WAW-1000E Computerized Hydraulic Universal Testing Machine 1000KN UTM Universal Testing Machine

  • >=1 Sets
    $12,240.00
Usage:
Compression Testing Machine Strength Testing Machine Tensile Testing Machine Bending Testing Machine Deformation Testing Machine
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
CHENDA
Model Number:
WAW1000E
Power:
Hydraulic
Name:
WAW-1000E Computerized Hydraulic Universal Testing Machine 600KN UTM
Max. capacity (KN):
1000KN
Relative error of reading:
≤±1%
Max. tension test space (mm):
750
Max. compression test space (mm):
800
Cabinet dimension(mm):
850*1200*1400
Frame dimension(mm):
1120*730*2500
Weight:
3800kg
Safety devices:
Software and machinery protection
Power supply:
AC 3 Phase 380V 60/50Hz
Supply Ability
Supply Ability:
300 Set/Sets per Month
Packaging & Delivery

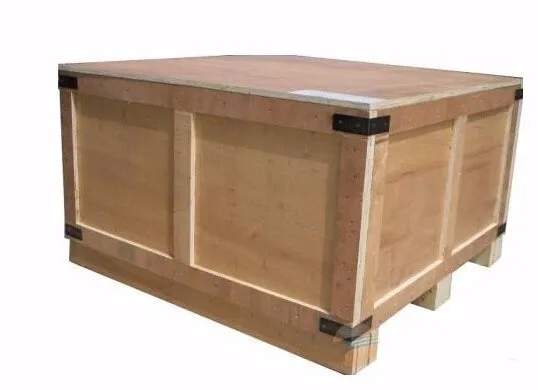

Packaging Details
1> Inner package: dust-proof plastic bag and strength film
2> Outer package: standard export wooden case with pallet
3> Special package: according to buyer's requirements
4<The packages suitable for international transport by sea, by air or any other delivery methods
Port
QINGDAO
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Product Description

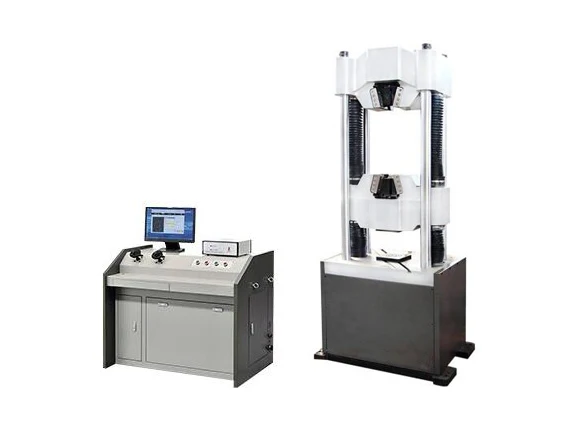

WAW-1000E Computerized Hydraulic Universal Testing Machine Tensile Compression Test

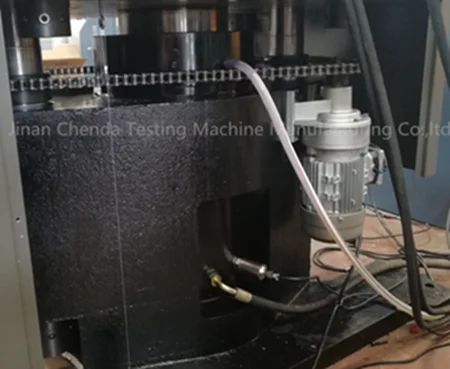

Big Oil Tank

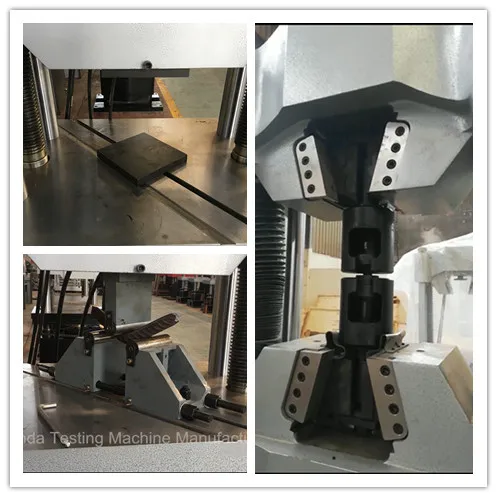

Steel Bar Bending Test And Bolt Tensile Test

Brief Introduction

WAW - 1000 E Computer Control Electro-hydraulic Servo Hydraulic Universal Testing Machine,This type machine is suitable for metal sheet,bar,screw and other products mechanical properties test .The relative tension fixture can be used to complete the tensile test of steel pipe,fastener, electronic power fittings, anchor,stand, chain and the other products .The Relative compression fixture can be used to complete the compresion test of cement,concrete,stone,block, hollow brick, spring and other products. The relative bending fixture can be used to complete the bending test of metal sheet ,bolt sheet performance test and so on.

Load Frame:

1>The oil cylinder is at the bottom of the load frame. Tension space is at the upside and compression & bending spaces are between lower crosshead and working table. It is adopting oil hydraulic power to push the piston in the oil cylinder to provide loading force. The lower crosshead is driven by motor through decelerator, chain transmission device and screw pair to realize the adjustment of testing space.
2>The machine with high rigidity test frame, can be fully loaded tensile testing, can meet high frequency test requirement.The central line of the upper and lower chucks and the tension axis of the tester are coaxially 5%.
3>High-precision gap seal cylinder,the unique static pressure oil film-free-oriented technology to protect the testing process running in the relatively indiscriminate friction environment.
4>Adopting inching and adjust speed hydraulic clamping device , provide more clamping security care.
5>Wedge jaw
The whole jaw is made of alloy steel,Heat treatment after Precision Machining in NC Machining Center,To ensure the economic service life of jaw, and to prevent slippage caused by pliers deformation.

Standards: ISO75001, ASTM A370, ASTM E4, ASTM E8, BSEN, EN10002-2, ISO6892, BS4449:1998 and other international standards.
Measuring System:
The machine adopts oil pressure transducer to measure load and use photoelectric encoder to measure the displacement. The loading force display on computer
Technical Parameter:

Specification
WAW-1000E
Max. capacity (KN)
1000
Relative error of reading
≤±1%
Clamping method
Hydraulic Power
Max. tension test space (mm)
750
Max. Compression test space (mm)
800
Round specimen clamping range(mm):
Φ10~Φ55
flat specimen clamping thickness(mm):
0-40
Flat specimen clamping width(mm):
110
Column net distance (mm)
580
Power supply (KW)
380V 50HZ
Span of bending roller (mm)
400
Width of bending roller (mm)
140
Diameter of bending roller (mm)
Φ40
Compression platen size (mm)
200*200
Max. piston stroke (mm)
250
Piston max. speed (mm/min)
80
Cabinet dimension(mm)
850*1200*1400
Weight
About 3800kg
Frame dimension(mm)
1120*730*2500

Standard Delivery


Name
Specification
Quantity
Remark
Host
1set
Chenda
Servo control oil source
1set
Chenda
Control Cabinet
1set
Chenda
Measurement system
1set
Chenda
Oil pressure transducer
1set
Jiangsu
Optical encoder
1set
Computer
1set
Lenovo
Printer
1set
HP
Round specimen specification mm
Φ10~Φ55
In total 5 Sets
Flat specimen specification mm
2~20,20~40
Compression fixture mm
150*150
1set
Chenda Customized
Bending fixture
Φ40
1set
Chenda
Pump
1set
MARZOCCHI
Motor
1set
Accompany documents

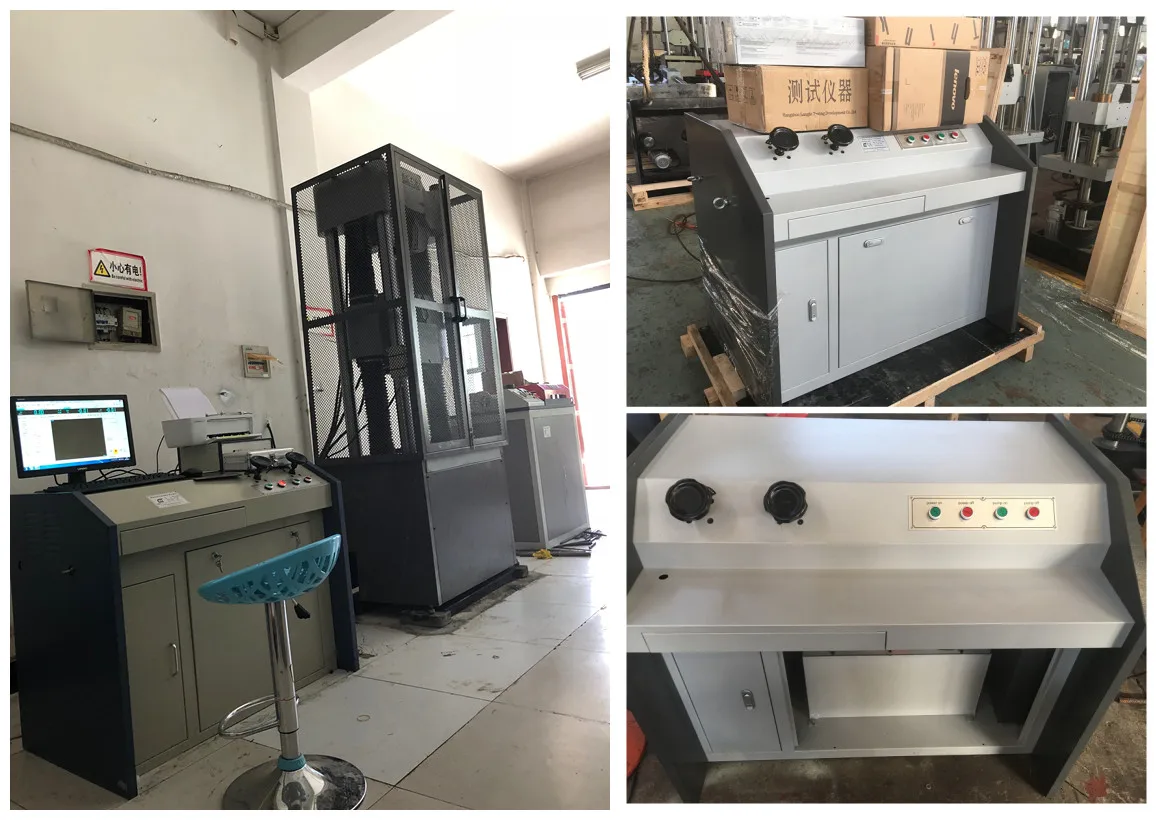

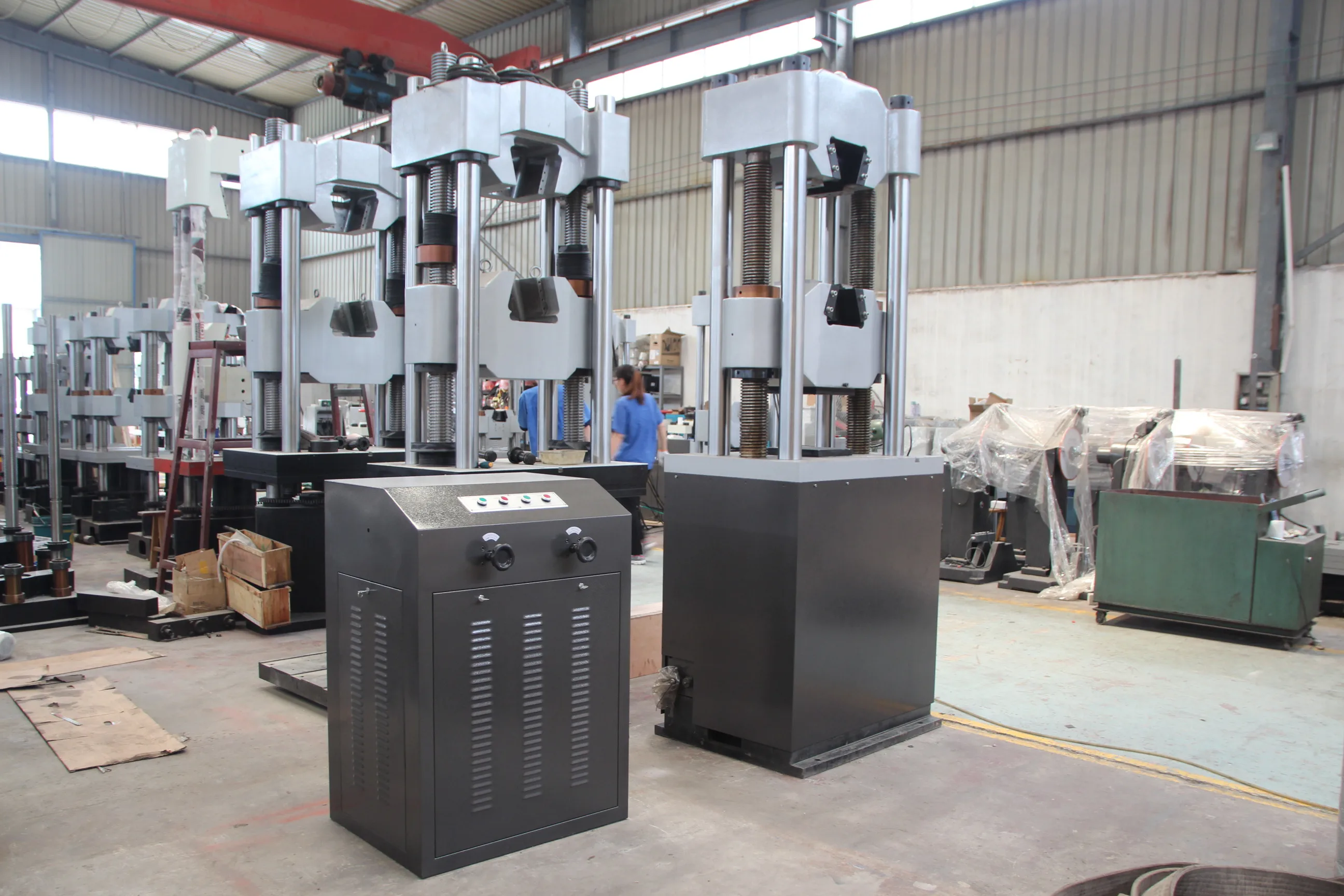

Machine In Work Shop
WAW-1000E Computerized Hydraulic Universal Testing Machine In Customer Laboratory
New Design Hydraulic Universal Testing Machine In Our Work Shop
2018 Hydraulic Universal Testing Machine In Our Work Shop
Max Test Software

Main Features of Max Test  Soft Ware

1.Easy to control and friendly interface
Windows based interface, easy and fast to reach different functions, suitable for most of operators using habits.
2.Full digital display and computer control
Adopt special testing machine Controller, fast response and reliable to parameter gathering. Realize the digital adjustment and zeroing of LOAD, DEFORM and DISPLACEMENT as well as PID parameter adjusting.
3.Manual or program control of test process
The software provides multi functional control mode: Load (stress) control; Displacement (Stroke) control, Strain (Deformation) control, Load keeping, Displacement keeping, Customized programming control ect.
In stroke control mode, operator can define customized test speed to conform to different test standard. Preset limit position and return position will secure the safety and return the crosshead automatically after test finished. In program control mode, the testing machine is controlled by conditional programs, operator can input each condition to regulate test process, and software can realize constant parameter control through this function.
4.Multilevel authorization access
The software regulated different access level to protect machine calibration parameters. Reliable to secure the information safety and easy for software maintenance
5.Perfection of diagramming functions:
Realize the testing diagram online display and reproduction.
Zoom in or out the test diagram at any place with any rate.
Auto suit the diagram according to display resolution
Coordinates point tracing to check the test results in each point
6.The report creation as Excel, word and template
The software provide different way to create test report
Single material test report
Batch material test report
Customized test report
Coordinates point test report
7.Test curves
Load-Time
Extension-Time
Load-Displacement
Load-Extension
Stress-Strain
Etc

Packing & Delivery
Packing material
Plywood
Host packing dimension
930*820*2520mm
Cabinet packing dimension
1280*850*1500mm
Inner packing
dust-proof plastic bag
Shipping

Suitable for international transport through shipping by sea, by air or any other delivery method.

(Note: we can provide special packages according to buyer's requirements.)

Cooperation Customer

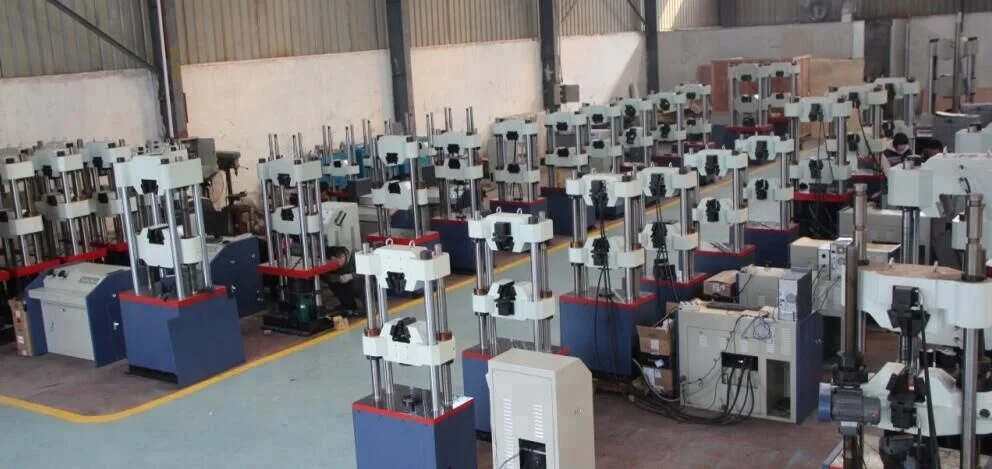

Our Factory

Jinan Chenda Testing Machine Manufacturing Co., Ltd. was established in 2003, and is a professional comprehensive company which integrates research and development, production, marketing and service. Our products are applied widely in many fields such as scientific institutions, colleges, metallurgical, construction materials, railway trains, highway traffic, rubber plastic, wire and cable, and fire facilities.
Our company is located in the beautiful spring city - Jinan, which is the center for developing testing machines in China as well as the largest testing machines producing base at home.
We are specialized in providing:
1. Hydraulic universal testing machines
2. Electronic universal testing machines
3. Friction and wear testing machines
4. Complete impact testing equipment and bending testing machines

FAQ

1. Are you a manufacturer?
Yes, we are one of the largest manufacturer of universal tensile testing machines and have a history of more than 13 years
2. Do you have after-sales service?
In general, every machine shipped from our factory provides 12 months of free maintenance. If your machine does not work properly, you can contact us and we will try our best to communicate with you via email or wechat video chat. We promise we will reply to you within 24 hours and with 3 Within a working day to provide solutions.
3. What is the delivery deadline?
Most of the time, we have inventory at the factory. If not, the delivery time is usually 15 to 20 days after receiving the payment. If you need it urgently, we can consider making special arrangements for you.
4. What kind of packaging and transportation do you use?
Under normal circumstances, we will use ordinary orders such as DHL, Fedex, UPS TNT transport. Large orders will use aviation or shipping.
5. Can the device be customized
We can not only provide standard machines, but we can also provide customized machines according to your needs.At the same time, we can also place your trademark on the machine.
6. What kind of packaging do you use?
Plastic sealed and sturdy wooden box.
7. What payment methods do you support?
T/T, Western Union and so on

8. How to distinguish whether we are a real manufacture of the machine ?

A:Come to visit the faCtory

B: Require the group photo of salesperson and machine

C:Video with the salesperson to see the machine by yourself.
