300kn Cement Compression And bending Tester

FOB Reference Price:Get Latest Price
$4,500.00 - $4,700.00 / Set | 1 Set/Sets 300kn Cement Compression And bending Tester (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
Chenda
Model Number:
YAW
Usage:
Compression Testing Machine, Compression Testing Machine, compression and flexture test
Power:
Hydraulic, Hydraulic, 380 V 50HZ
Mode:
300kn Cement Compression And bending Tester
Max. test load:
300KN
Display:
Computer display
Specimen:
concrete, brick, cement
Computer brand:
Lenovo
Printer brand:
HP
Testing Machine brand:
Chenda
Supply Ability
Supply Ability:
30 Set/Sets per Month 300kn Cement Compression And bending Tester
Packaging & Delivery
Packaging Details
Selling Units: Single item
Single package size: 500X600X1200 CM
Single gross weight: 500.0 KG
Port
QINGDAO
Lead Time :
7 days after received your payment
Product Description

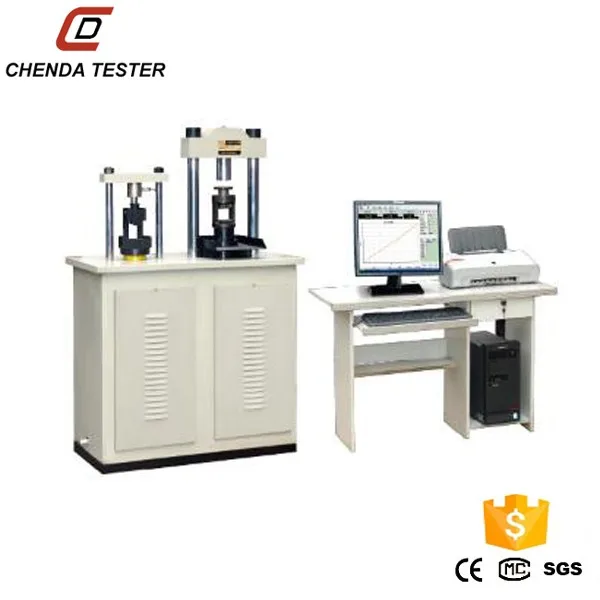

300kn Cement Compression And bending Tester

Frame:
This testing machine frame adopts double space, the right space is flexture test space and the left space is compression test space.
he motor and loading system install on the bottom of the testing machine.
Standard: EN1015-11/EN196-1/GB17671-1999
Control Part:
●This model testing machine adopts Lenovo computer , servo control system. So the test process is very smooth and efficient.
●This testing machine can complete the test parameter's setting, the test process's controlled, the test data collecting,Analysis and display.
●It can do one specimen compression test also can do a group specimen compression test.
●This testing machine can connect the printer this can print the test curve and test report.

                         SPECIFICATIONS FOR 30 TON COMPRESSION AND FLEXURAL TESTING MACHINE
Model
YAW-300
Maximum Compression test force(KN)
300
Maximum Flexural strength test force(KN)
10
Test power accuracy
±1%
Loading speed accuracy(KN/S)
0.01-5 Setting freely
Test speed(mm/min)
0.05-50
Bearing plate diameter(mm)
Upper :Φ100 Lower: Φ160
Standard distance between the two bearers(mm)
100 customized
Max distance between the right and left columns(mm)
200
The distance between the upper and lower anti rupture fixture (mm)
180
Bend diameter (mm)
10
Effective stroke(mm)
80
Power supply
AC 380V±10%  50Hz
Dimension(mm)
630x400x1530
Weight(kg)
200



Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Certifications
Detailed Images

Machine Parts

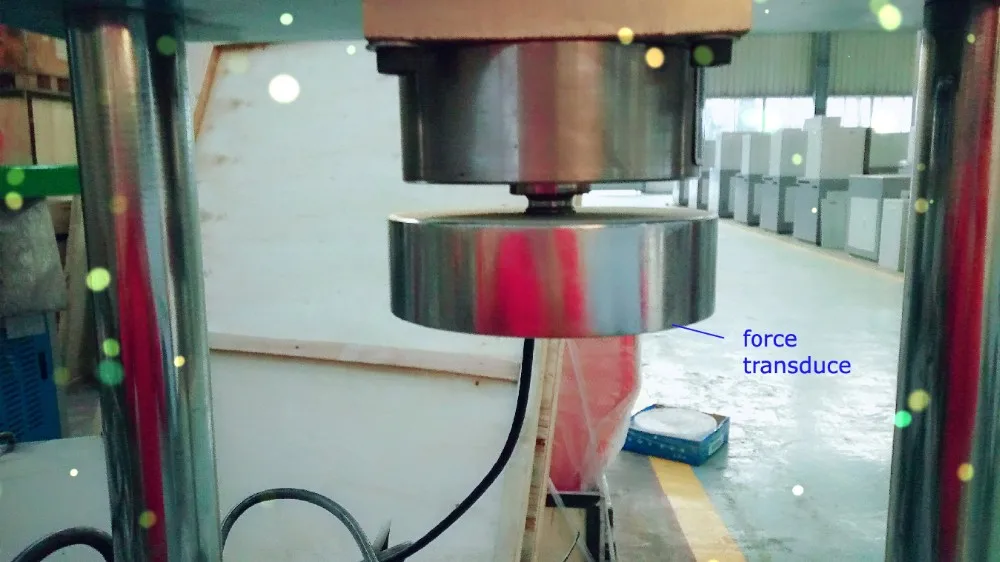

Name: FORCE TRANSDUCE


Main Features

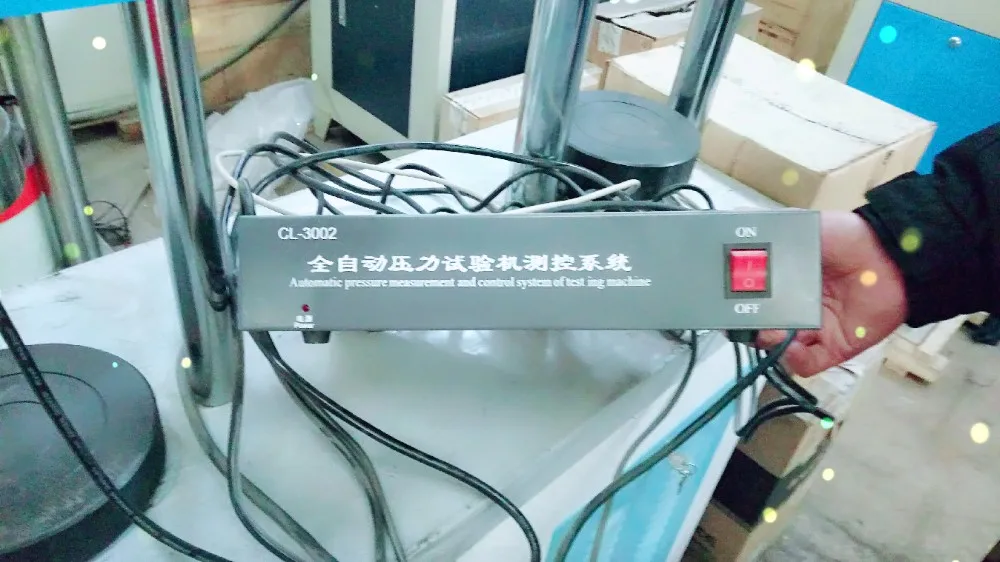

Name: CONTROL BOX

Machine Parts

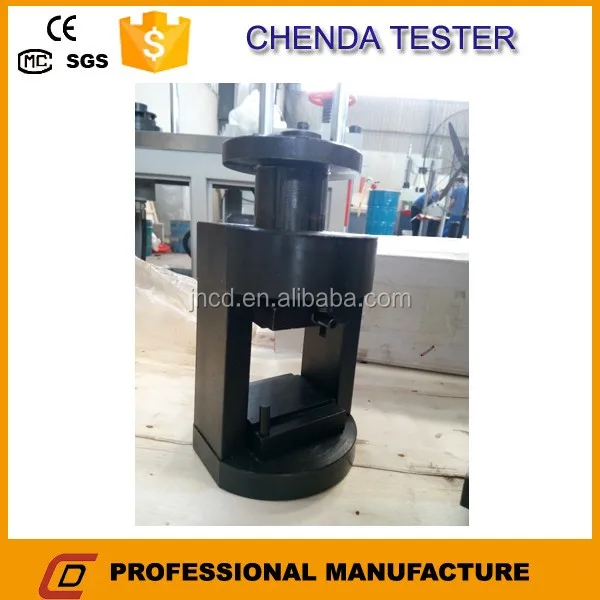

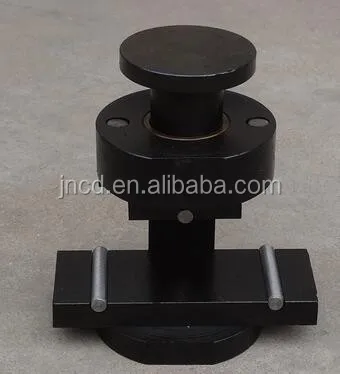

Name: FLEXURAL STRENGTH TEST DEVICE

Main Features



Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
670 (L) * 500 (W) * 1650 (D)
Weight
500KG



Packaging Details
The normal package is ply wooden box(Size: L*W*H).
