FZG wear Tester

FOB Reference Price:Get Latest Price
$16,000.00 - $17,000.00 / Set | 1 Set/Sets FZG wear Tester (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
Chenda
Model Number:
MR-C1
Name:
FZG Tester
Gear box volume:
1.25L
Dimensions:
1390X750X1082mm
Heating power:
0.5X3=1.5kw
Max. loading class:
13 classes
Max. torque:
1 Kn
Temperature control accuracy:
±2℃
Motor power:
6.5/8kw
Motor speed:
1450/2880 r/min
Display:
Computer Display
Usage:
Abrasion Tester
Power:
HYDRAULIC
Supply Ability
Supply Ability:
300 Set/Sets per Month FZG wear Tester
Packaging & Delivery
Packaging Details
1> Inner package: dust-proof plastic bag
2> Outer package: standard export wooden case with pallet
3> Special package: according to buyer's requirements
4> The packages suitable for international transport by sea, by air or any other delivery methods
5> Shipping by sea with CFS/CFS from Qingdao sea port or for your requirement.
Port
QINGDAO
Lead Time :
Shipped in 5 days after payment
Video Description
Product Description

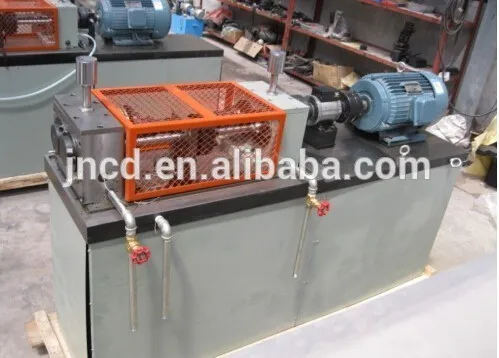

FZG  Wear Tester

Brief Introduction

FZG gear wear test machine is a multi-purpose testing machine. Can be used for the assessment of the carrying capacity of the lubricant, Also can special made by client’s demands. Usually using for gear bending fatigue strength and gear touch fatigue strength test.
II. Apply for:
This machine confirms to GB/T 13672-92 standard test method for scuffing load capacity of gears and SH/T 0366-1992 lubricant carrying capacity test method (CL-100 Gear machine method)
III. Technical specification:
Specification                                          MR-C1
Max. torque                                            1Kn. m
Max. loading class                              13 classes
Temperature control accuracy         ±2℃
Motor power                                           6.5/8kw
Motor speed                                      1450/2880 r/min
Gear box volume                                 1.25L
Heating power                                        0.5X3=1.5kw
Dimensions                                         1390X750X1082mm
IV.Working conditions
1> The fluctuation range of the power supply voltage should not exceed the rated value ± 10% and the fluctuation range of the frequency should not exceed 2% of the rated value.
2>Test machine should be installed horizontally and the installed base should be smoothly. The horizontal error for the host workbench aspect direction should not exceed 0.2/1000.
3>Room temperature 10 º C-35 º C.
4>The environment no vibration, no strong magnetic interference and non-corrosive media.
5>Relative humidity less than 80%.
V. Structural characteristics and working principle
1> Loading mode
This machine is a dynamic closed-loop configuration, and load mode adopts rod hanging weights mode.
The loading lever is hung on the load sheave clutch. By hanging weights plus through fastening loaded clutch nut and make the two sheave tighten which installed on the loaded clutch. Then remove the weights and the loading lever and you can readout the torque on the clutch torque measurement.

3> Installation and adjustment
Make the test machine at the level of the floor and mat three horns. Put the spirit level on the test table. By adjusting the horn to make the vertical and horizontal direction error do not exceed 0.2/1000.
The test machine host should be placed separately from the control cabinet to avoid the noise and pungent odor when the testing machine working. After the start of the test machine, person can not inter into the room which the machine placed.
The test procedure in accordance with the the "lubricant carrying capacity assay (CL-100 gear machine method) SH/T0306-92" provisions.

Detailed Images
Standard Accessary

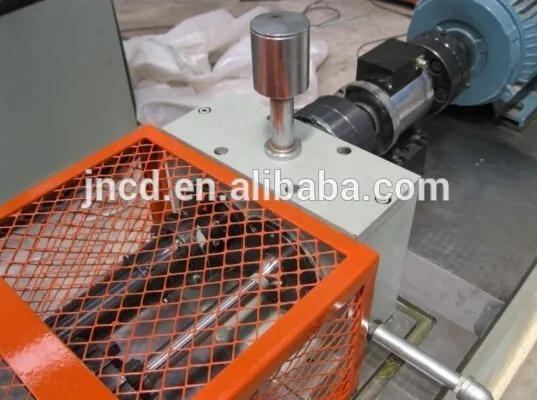

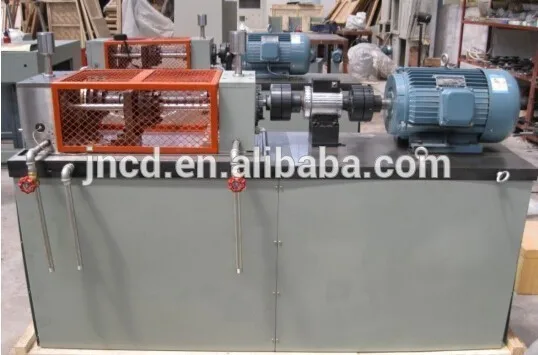

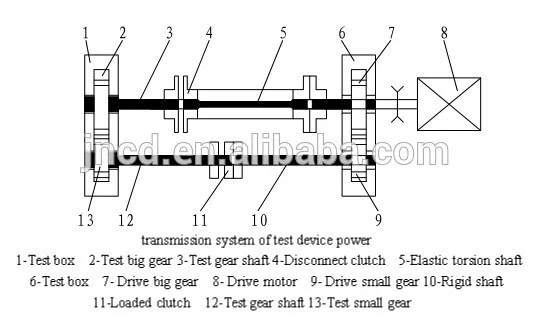

Spindle drive device of testing machine

The shaft 5 is drive shaft, the shaft 3, 12 ,10 is drive shaft

Driving box section


Assembly site for testing machine


Packing & Delivery

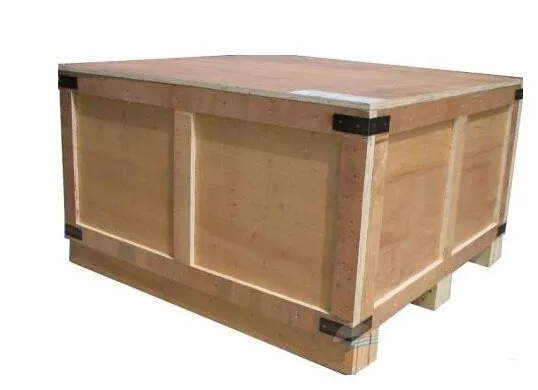

Packing material
Plywood
Host packing dimension
930*820*2520mm
Cabinet packing dimension
1280*850*1500mm
Inner packing
dust-proof plastic bag
Delivery
3-5 days after received the payment

Shipping

Suitable for international transport through shipping by sea, by air or any other delivery method.

(Note: we can provide special packages according to buyer's requirements.)


Certifications

    CE Certificate

      Certificate No.: 743-CI-32015

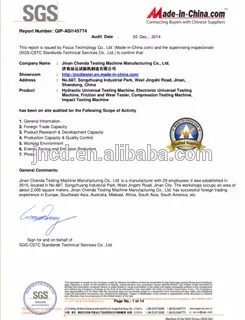

   SGS Certificate

 Certificate No.:QIP-ASI145774


    Business License

    License No.:91370104553713668R


Cooperation Customer

                                Customer from India

                 Customer from Canada

                       Customer from Bangladesh

                          Customer from Bangladesh

                      Customer from Russia and Germany

                                Customer from Africa

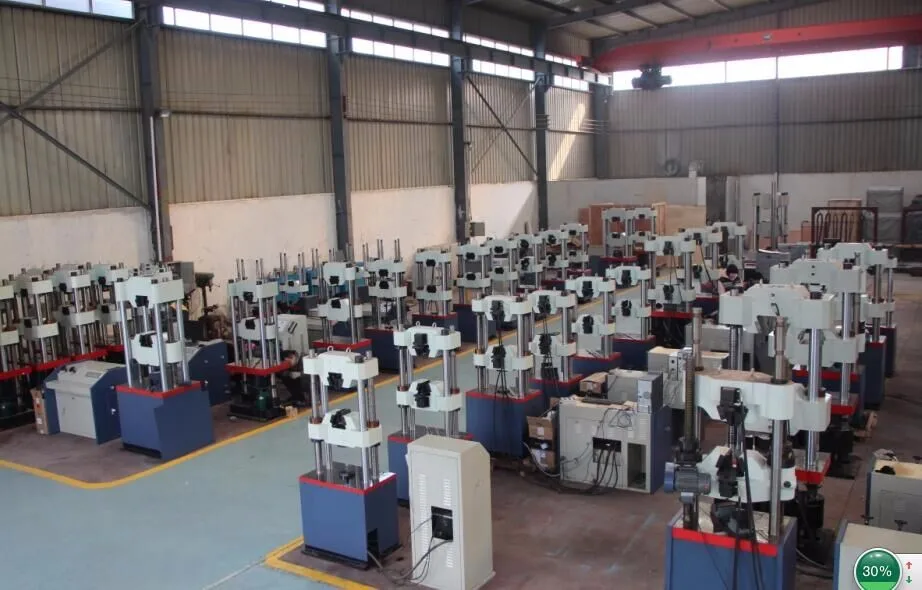

Our Compony
