measurement analysis instruments

FOB Reference Price:Get Latest Price
$13,500.00 - $14,000.00 / Set | 1 Set/Sets measurement analysis instruments (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
Chenda
Model Number:
WDW
Power:
Electronic
Usage:
Universal Testing Machine
Product name:
measurement analysis instruments
Max Test Force:
300kn
Control:
Computer Control
Load accuracy:
Within ±1%
Measurement range of test force:
2%-100%
Testing machine accuracy grade:
1
Test Space:
more than 700 mm
Distance between columns:
more than 400mm
Displacement Control Range:
0.05-500 mm/min
Voltage:
220V, 110 V
Supply Ability
Supply Ability:
300 Set/Sets per Month measurement analysis instruments
Packaging & Delivery
Packaging Details
1> Inner package: dust-proof plastic bag
2> Outer package: standard export wooden case with pallet
3> Special package: according to buyer's requirements
4> The packages suitable for international transport by sea, by air or any other delivery methods
5> Shipping by sea with CFS/CFS from Qingdao sea port or for your requirement.
Port
QINGDAO
Lead Time :
Shipped in 5 days after payment
Video Description
Product Description
measurement analysis instruments

Brief Information
Computerized electronic universal testing machine is designed and manufactured according to ASTM, ISO,DIN etc standards. It is computer-controlled precision testing machine, suitable for wide range of material for tension compression, bending and shearing test. It has high stability as well as high precision, equipped with PC system& printer for graph, test result display, test control as set program, printing & data processing. Complete with modulus for metal, spring, textile, rubber, plastic and other material testing & creep test. It is widely used in many field used in many fields such as industry factories, mineral enterprise and high schools.
Application:

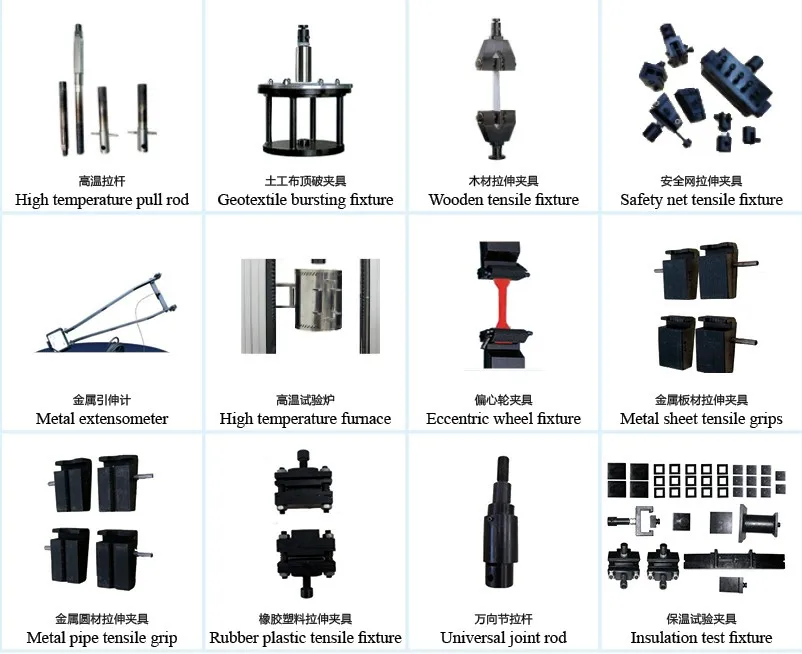

Suitable for no-metallic material such as rubber,plastic,ribbon,wire,rope,waterproofing membrane,wood-based panel.and small size, small load metal material mechanical properties test. The relative fixture can be complete tensile,compression,bending, shearing, tearing, peeling ,static stiffness ,ring rigidity,extraction force and other performance tests.

Force measurement

Load accuracy meets or exceeds grade 0.5 ASTM E4,ISO7500-1,EN10002-2, BS1610,DIN51221

Displacement measurement
Encoder over 2000 pulse/turn to guarantee the accurate displacement, the encoder is installed with the ball screw and the ball screw to drive it turning directly.

Speed setting
Speed can be set between 0.01-500 mm/min by computer and excellent servo motor can support the high speed, and the speed can be extended by special offer.

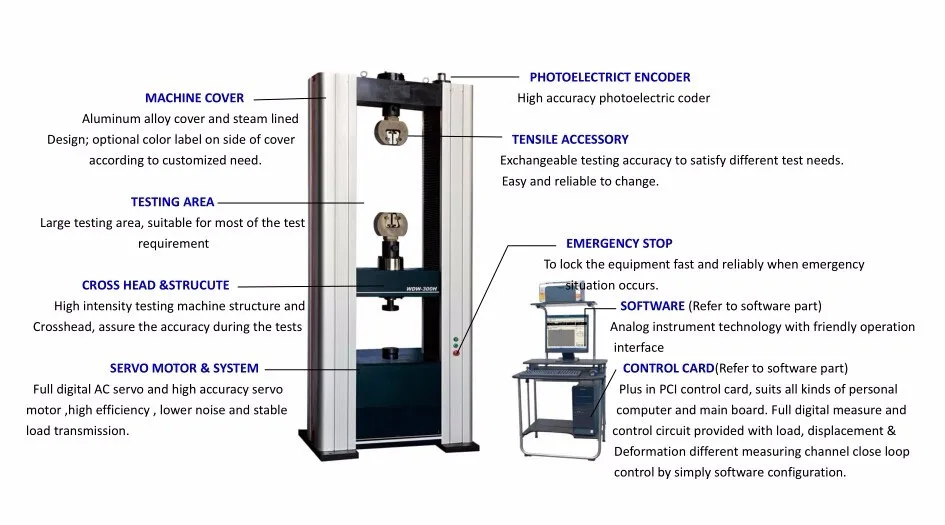

Host Frame
●Using four guiding optical screws, φ 40mm high precision ball screw.The high rigid frame is composed of thick beam and base,which can guarantee the frame with excellent longitudinal and transverse rigidity and good overall accuracy.
●Under the guidance of the internal control precision of 5% of coaxiality, the cross joint can be precisely aligned in axial test, and the linear motion of the beam can be guaranteed, so as to ensure that the influence of the lateral force on the specimen under load is minimal. Thus, better test performance can be obtained.
Controller
●Force , displacement , deformation measurement resolution up to 1 / 300000 of full scale
●AD sampling frequency can be as high as 300 Hz
●Can realize closed-loop control of parameters such as test force,specimen deformation and beam displacement .It can be used to realize the tests of constant speed- test force, constant speed- displacement, constant speed- strain, constant speed-load cycle, constant speed-deformation cycle and so on. Various control modes can be switched smoothly. And smooth transition.Advanced Neuron Adaptive PID Control algorithm.

Techinical Parameter
Mode
WDW-300
Max. test force
20kn-300kn
Measurement range of test force
2%-100%
Testing machine accuracy grade
1/0.5
Accuracy of test force
≤±1%
Crosshead displacement resolution
0.01mm
Adjust speed range
0.005-500mm/min
Tensile test space
more than 700 mm
Compression test space
800 mm
Host type
door structure
Distance between columns
450mm
Weight
1050kg
Working environment
Room temperature 45 humidity 20%-80%
Standard Delivery
1
Test host
1
2
AC servo motor
1
3
Speed governor
1
4
Load cell
1
5
Precision ball screw
2
6
Deceleration system
1
7
Computer control system
1
8
Optical encoder
1
9
Computer
1
10
Printer
1
11
Windows system software
1
12
Accompany tools
1
13
Tensile accessory
1
14
Compression accessory
1
15
Bending accessory
1
16
Technical information
1
Product Photos

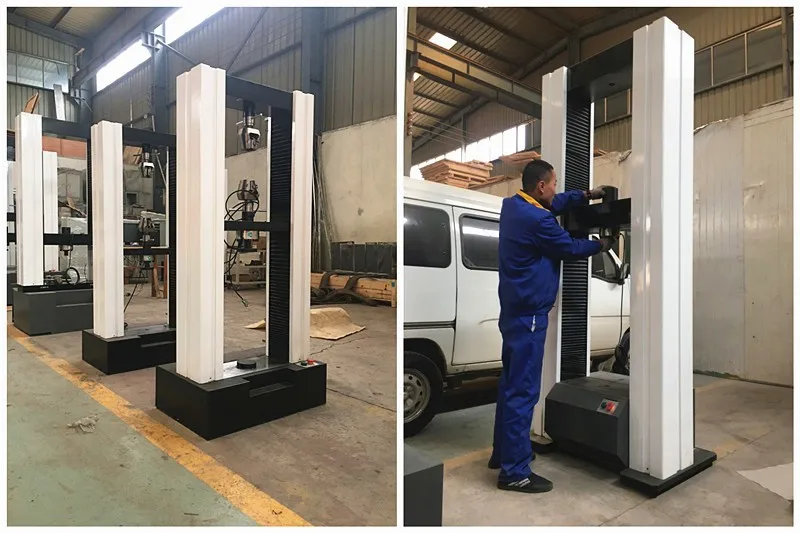

Electronic Universal Testing Machine In Our Factory

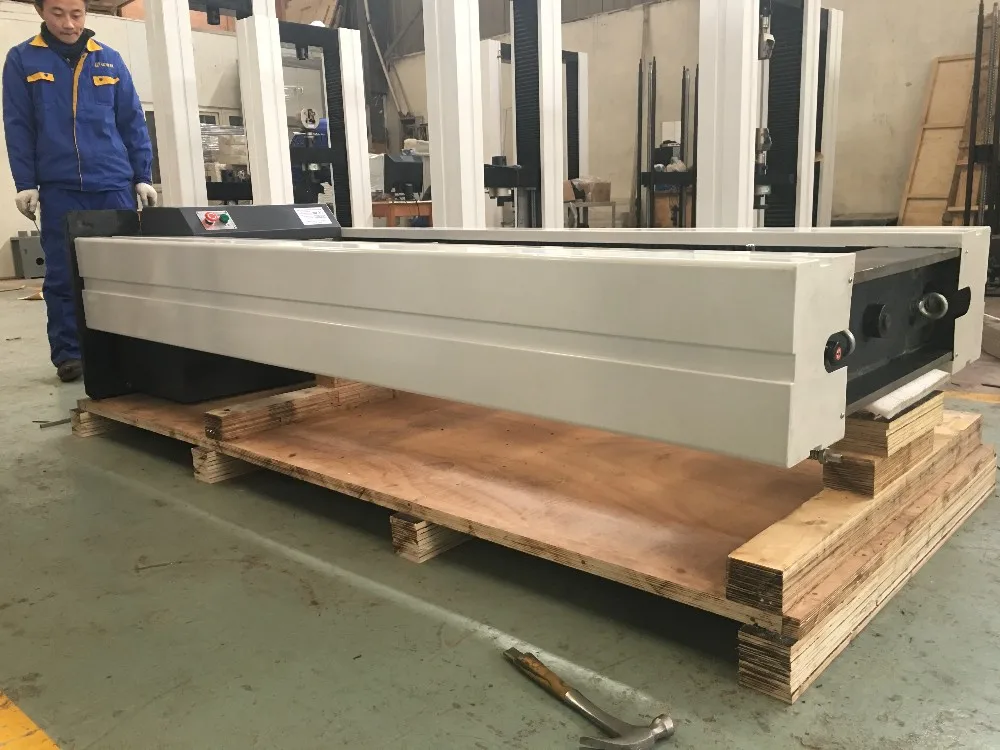

Packing & Delivery
Packing material
Plywood

Packing dimension

800*630*2110mm
650*600*870MM
Inner packing
Inner packing
 Weight
500kg

Delivery &Shipping

Delivery:3-5 days after received the payment
Shipping:
Suitable for international transport through shipping by sea, by air or any other delivery method. according to the customer demands
(Note: we can provide special packages according to buyer's requirements.)

Cooperation Customer
Our Compony
Our Service

Pre-Sale Service.

1.24 Hours online service for your consult.
2.Help choose right model,and a series of service,person,advise.

Middle-Sale Service

1.Give you best offer,Provide discount
for many sets order
2.Do customer's request:Choose
payment term you convenient.
3.Promptly production and delivery,
inform you in time.
4.Can provide invoice value as you like to decrease your tax.

After-Sale Service

1.Two  years warranty service and all life maintenance.
2.Technical Engineer are available for oversea training.
3.Free change for some parts

FAQ & Contact Us

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:

Other Model Machine

WAW-Hydraulic Universal Tensile Strength Testing Machine


WDW-Electronic Universal Tensile Strength Testing Machine


WDW Ring Stiffness Testing Machine For Pipe
