Grease and lubricant Four ball friction and wear testing machine

FOB Reference Price:Get Latest Price
$15,000.00 - $16,000.00 / Set | 1 Set/Sets Grease and lubricant Four ball friction and wear testing machi (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
Chenda
Model Number:
MRS-10A
Usage:
Abrasion Tester, For gear test
Power:
Hydraulic
Name:
Computer Controlled Electro-Hydraulic Servo Four Ball Friction Tester
Application:
Friction And Wear
Max. Test load:
10KN
Load range:
60N~10000N
Friction measuring range:
0~300N
Relative error of rotating rate:
±10r/min
Max. Tolerance of test loading holding:
±3% FN
Rotating setting range:
1~9999999
Steel ball diameter:
Diameter 12.7mm
Supply Ability
Supply Ability:
30 Set/Sets per Month Grease and lubricant Four ball friction and wear testing machi
Packaging & Delivery
Packaging Details
1> Inner package: dust-proof plastic bag
2> Outer package: standard export wooden case with pallet
3> Special package: according to buyer's requirements
4> The packages suitable for international transport by sea, by air or any other delivery methods
5> Shipping by sea with CFS/CFS from Qingdao sea port or for your requirement.
Port
QINGDAO
Lead Time :
15 worrking days
Video Description
Product Description

Grease and lubricant Four ball friction and wear testing machine

Brief Introduction:
The machine is used to evaluate the loading capacity of lubricants in the process of sliding friction o na contact point under very high pressure. The above mentioned capacity including 3 datas to be tested: the maximum load PB under the unstuck condition, sintered load Pd and comprehensive value of wearing during friction ZMZ.

Standards:
ATMS A2783, ATMS D2266 , SH/T0189-92, SH/T0202-9, SH/T0204-92

Specification:

Specification
MRS-10A
Max. Test load
10KN
Load range
60N~10000N
Relative error of load capacity>400 N
≤±1%  Error of repeatability ≤1%
Relative error of load capacity≤400N
≤±5KN   Error of repeatability <5 KN
Max. Tolerance of test loading holding
±3% FN
Friction measuring range
0~300N
Relative error of friction
10N~300N ≤±2%   Error of repeatability ≤2%
Rotating speed of the main spindle
200r/min~2000r/min
Relative error of rotating rate
±10r/min
The range of heating temperature
Room temperature ~200℃
Temperature controlling range
±2℃
Timing setting range
1s~9999min
Rotating setting range
1~9999999
Steel ball diameter
Diameter 12.7mm
Dimension
1200*870*1700mm
Net weight
Approx.800kg

Configuration

This testing machine composed by machine base, spindle drive, cylinder piston force system, hydraulic station, electronic control cabinet. All digital electric measurement amplification control system and liquid crystal display system. Real-time display test force, friction, speed , test speed, time and temperature.


1. Spindle motor: AC servo motor Y100L-4, Power 2.2kw, Shanghai DEDONG. Rate speed 1420r/min

2. Pump motor: AC servo motor Y90S-4, Power 1.1kw, Shanghai DEDONG. Rate speed 1400r/min.

3. Hydraulic valve, relief valve: Wuxi hydraulic parts co.ltd

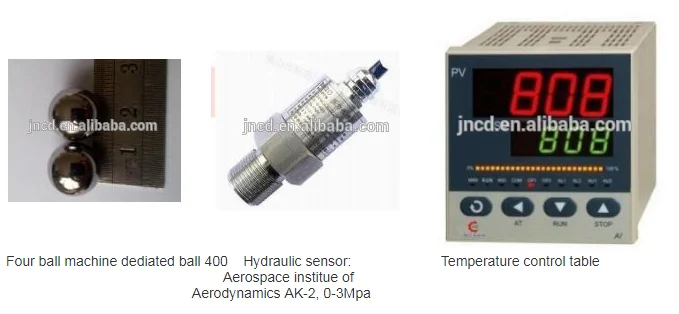

4. Hydraulic sensor: Aerospace institute of Aerodynamics AK-2, 0-3Mpa

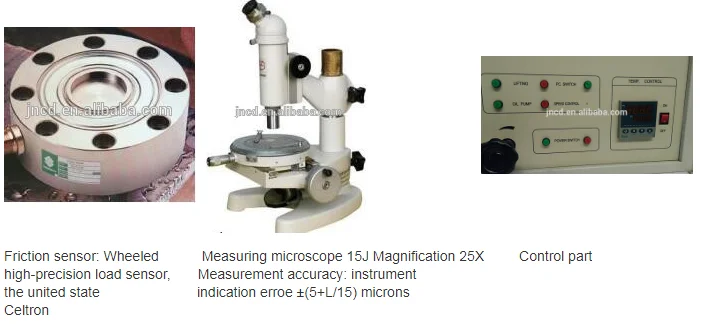

5. Friction sensor: Wheeled high-precision load sensor, the united state Celtron

6. Lenovo brand computer

7. HP brand printer

8. Inverter: Japan Yasukawa VS-606 V7

9. Temperature control table

10. Measuring microscope 15J Magnification 25X Measurement accuracy: instrument indication erroe ±(5+L/15) microns

11. Room temperature friction tank

12. High temperature friction oil tank

13. Four ball machine dediated ball 400
