600kn Hydraulic tensile testing machine price

FOB Reference Price:Get Latest Price
$7,800.00 - $8,200.00 / Set | 1 Set/Sets 600kn Hydraulic tensile testing machine price (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
CHENDA
Model Number:
WEW-600B
Power:
HYDRAULIC
Usage:
universal testing machinie
Product name:
600kn Hydraulic tensile testing machine price
relative error of test force:
≤±1%
Measurement range of test force:
4%~100%
Clamping ways:
Hydraulic clamping
Software:
Maxtest software
Load accuracy:
Within ±1%
Tensile Space:
550mm
Piston stroke:
200mm
Compression Space:
500mm
Flat specimen fixture:
15-30mm
Supply Ability
Supply Ability:
300 Set/Sets per Month 600kn Hydraulic tensile testing machine price
Packaging & Delivery
Packaging Details
1> Inner package: dust-proof plastic bag
2> Outer package: standard export wooden case with pallet
3> Special package: according to buyer's requirements
4> The packages suitable for international transport by sea, by air or any other delivery methods
5> Shipping by sea with CFS/CFS from Qingdao sea port or for your requirement.
Port
qingdao
Lead Time :
Shipped in 5 days after payment
Video Description
Product Description

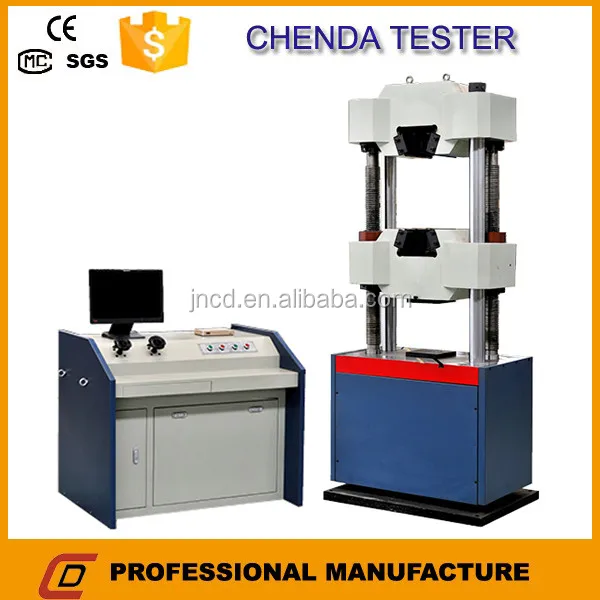

600kn Hydraulic tensile testing machine price


WEW Machine is adopting oil hydraulic power to push the piston in the oil cylinder to provide loading force. Therefore it is very suitable for making test to different metal and nonmetal materials under high toughness and hardness against extreme big loading force. By using oil pressure transducer and photoelectric encoder, the computer is timely collecting the testing parameter like loading force, stroke etc. The servo system will provide on line close loop control and constant parameters control. The test software is able to create customized testing methods and setup testing report in only a few steps. WAW series is widely used in different inspection department, engineering area, universities and institutes.


Load Frame

The oil cylinder is at the bottom of the load frame. Tension space is at the upside and compression & bending spaces are between lower crosshead and working table. It is adopting oil hydraulic power to push the piston in the oil cylinder to provide loading force. The lower crosshead is driven by motor through decelerator, chain transmission device and screw pair to realize the adjustment of testing space.


Measuring System

The machine adopts oil pressure transducer to measure load and use photoelectric encoder to measure the displacement. The loading force display on computer.

Technical Parameter
No.
Technical
Specification
1
Max test force kN
600
2
relative error of test force
≤±1%
3
Measurement range of test force
4%~100%
4
Clamping ways
Hydraulic clamping
5
Round specimen fixture mm
Φ13~Φ40
6
Flat specimen fixture mm
0~15
7
The width of flat specimen mm
80
8
Max. Tensile test space mm
550
9
Max. Compression test space mm
500
10
Control cabinet Dimensions mm
1280*850*1200
11
Host Dimension mm
750*630*2170
12
Motor Power kW
2
13
Host weight kg
2000
14
Column clearance (mm)
450
15
Upper and lower platens size mm
Φ140
16
Maximum piston stroke mm
200
17
Piston movement speed mm/min
80
UTM Machine detail

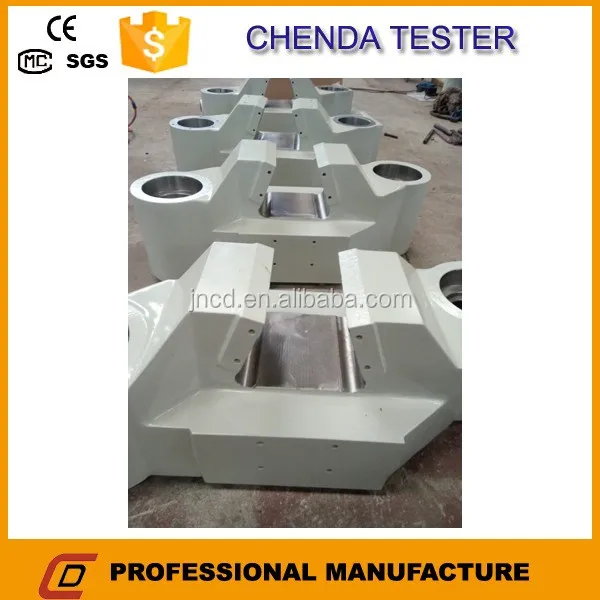

                        Crosshead

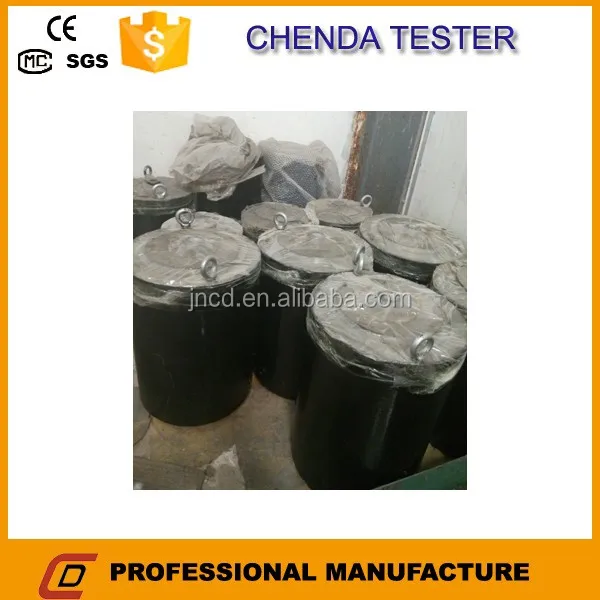

                        Oil piston

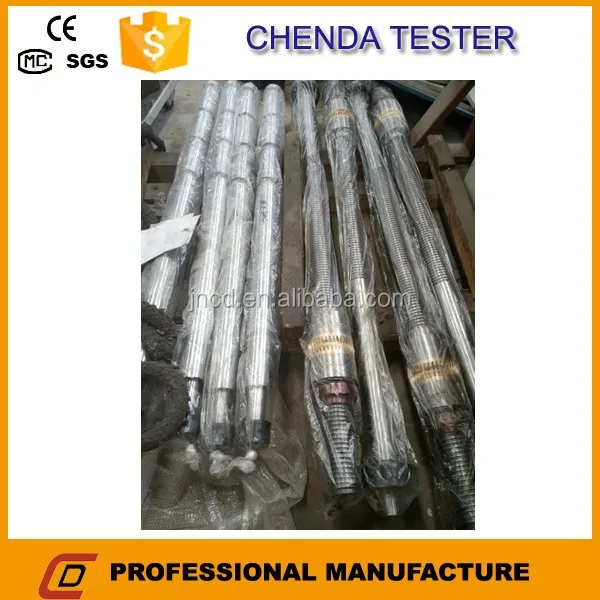

            Columns and Screws

                 Bending Accessory

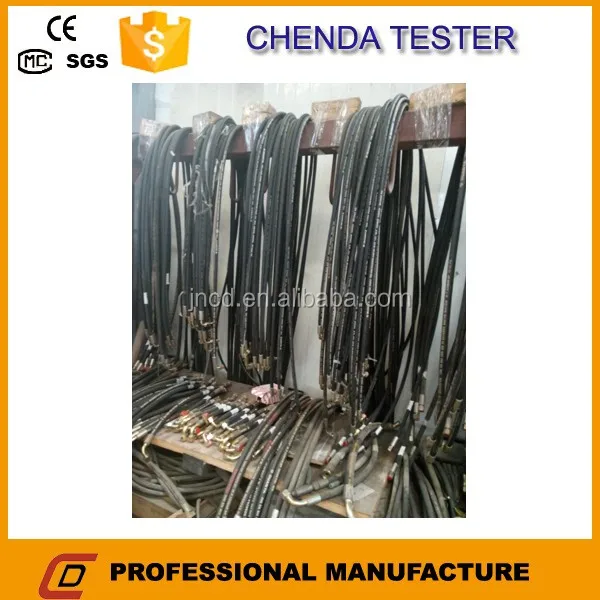

                           Oil Pipe

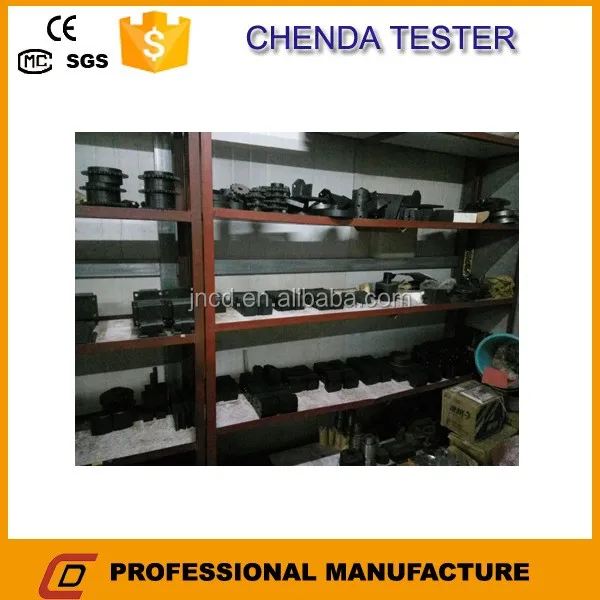

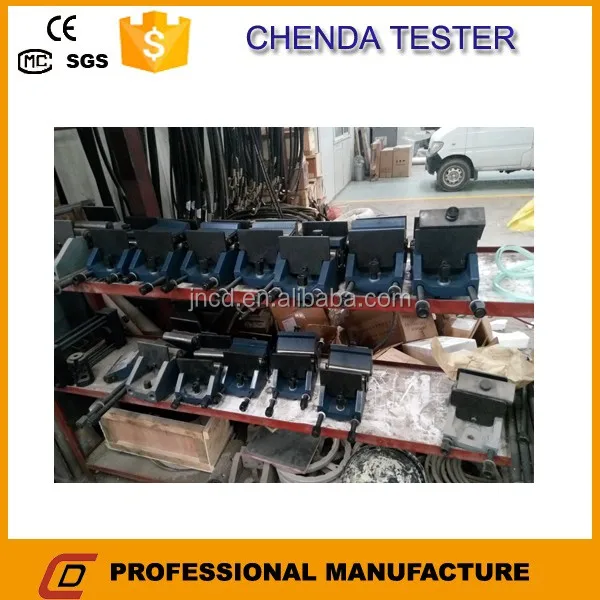

           Tensile test accessory

Packing & Delivery
Packing materail
Plywood
Package dimension
750*630*2170mm
1280*850*1200mm
Inner packing
dust-proof plastic bag
Transportation
Usually by sea; also can by air according to customer demands
Cooperation Customer

Customer from India

Customer from Bangladesh

Customer from Canada

Customer from Africa

Customer from Russia and Germany

Customer from Bangladesh

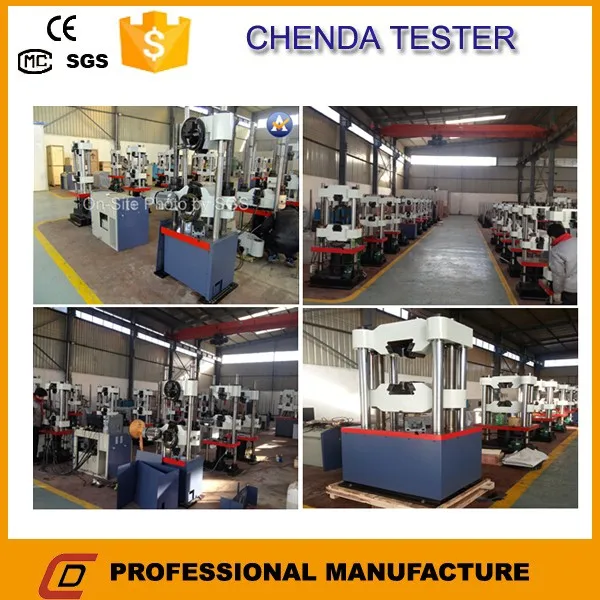

Working shop
Related Products

                         WAW-1000C model

                     WAW-1000D model

                    WE-600B model

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 3-7 days if the machine is standard are in stock. or it is 15-20 days if the machine is special are not in stock, it is according to specification.

Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
B: Payment by Alibaba Trade Assurance.

We are a member of Alibaba Trade Assurance which is a new service provided by Alibaba, safeguarding buyer's payment to suppliers to ensure suppliers fulfill their obligations regarding order delivery and product quality.
