WDW-20 Electronic Universal Testing Machine +Tensile Testing Machine Price+Lab Equipment Price

FOB Reference Price:Get Latest Price
$4,500.00 - $6,000.00 / Set | 1 Set/Sets WDW-20 Universal Testing Machine+Tensile Testing Machine Price (Min. Order)
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
Chenda
Model Number:
WDW
Power:
Electronic
Usage:
Universal Testing Machine
Product name:
WDW-20 Universal Testing Machine+Tensile Testing Machine Price
Test type:
Tension, compression, bending
Display:
Computer display
Max. test force:
50KN
Control:
Servo motor
Load accuracy:
Within ±1%
Measurement range of test force:
2%-100%
Color:
According to the client's demands
Testing machine accuracy grade:
1
Software:
Maxtest software with english version
Supply Ability
Supply Ability:
30 Set/Sets per Month WDW-20 Universal Testing Machine+Tensile Testing Machine Price
Packaging & Delivery
Packaging Details
1> Inner package: dust-proof plastic bag
2> Outer package: standard export wooden case with pallet
3> Special package: according to buyer's requirements
4> The packages suitable for international transport by sea, by air or any other delivery methods
5> Shipping by sea with CFS/CFS from Qingdao sea port or for your requirement.
Port
QINGDAO
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 To be negotiated

WDW-20 Electronic Universal Testing Machine + Tensile Testing Machine Price +Lab Equipment Price

Brief Information

Model WDW-20 Computerized electronic universal testing machine is designed and manufactured according to ASTM, ISO,DIN etc standards. It is computer-controlled precision testing machine, suitable for wide range of material for tension compression, bending and shearing test. It has high stability as well as high precision, equipped with PC system& printer for graph, test result display, test control as set program, printing & data processing. Complete with modulus for metal, spring, textile, rubber, plastic and other material testing & creep test. It is widely used in many field used in many fields such as industry factories, mineral enterprise and high schools.

Feature:

1> Complete computer controlled: the whole measuring and controlling system adoptsspecific PC control card used for testing machines, realizing the data zero and plus adjustment, which has very high reliability.
2>Supporting multi-transducers. Realizing the database management of the test data which are stored according to the standard format; facilitating other software to analyze and transfer.
3> Perfect programming by auto program control, every control mode can smoothly shift to another one. Fulfilling the test requirement of all kinds of materials with every test standard home and abroad
4>Control software has the the auto-adjusting function of test hardness, which assures that the system works with every kind of specimen hardness.
5>Perfect graphic function realizing the arbitrarily magnifying, decreasing, equaling, adding, indicative display and print of all kinds of test curves, the test point searching as well as the simultaneous display and print of several kinds of test curves. Data processing supposes self-disposing and input disposing of graphic human computer interaction, which facilitates the check and contrast of the test result.
6>The user can self-define the output of the test report, which makes the report format have high flexibility.
7>Modularization design facilitated the software upgrading, function spreading as well as the second development.


Force measurement

Load accuracy meets or exceeds grade 1 ASTM E4,ISO7500-1,EN10002-2, BS1610,DIN51221

Displacement measurement

Encoder over 2000 pulse/turn to guarantee the accurate displacement, the encoder is installed with the ball screw and the ball screw to drive it turning directly.


Speed setting

Speed can be set between 0.01-500 mm/min by computer and excellent servo motor can support the high speed, and the speed can be extended by special offer.

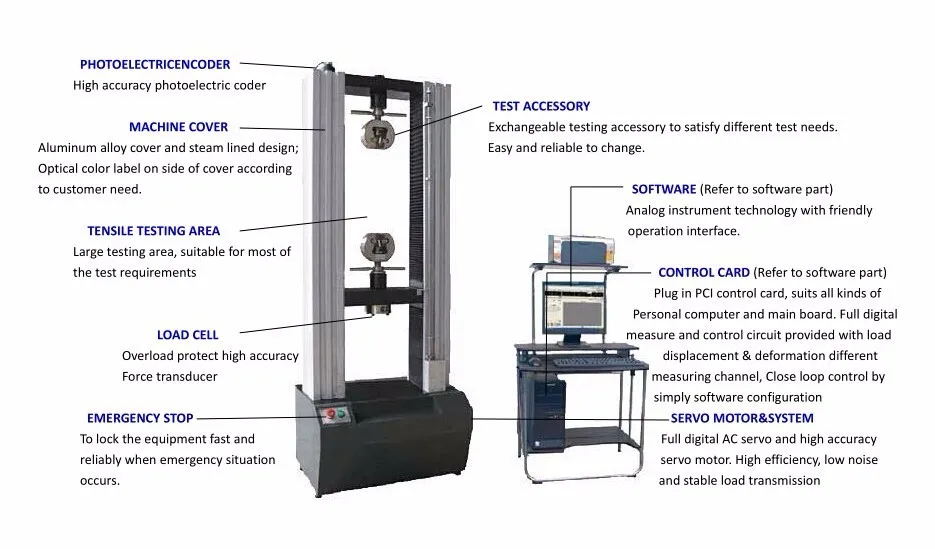

Load frame

Robust compact structure guarantees the stiffness of the machine, and the servo motor drives the no backlash ball screw to do test

Software features

1. Language selection: English and other languages interface freely switch operation,

2. Basic functions: calculate and list data graphics: the basic parameters of a material testing machine: (1).yield point(2).0.2% off set.(3). Yield strength(4). Tensile strength(5). Elongation(6). Energy absorption(7). Maximum(8). Rupture values(9). Deformation amount (10). Averages. More than twenty parameters contrast to graphics.

3. Multiple curve display mode: Stress - strain, Force - displacement, Force - time,

 Strength –Time and other curve patterns.

4. Control mode: fixed displacement, fixed speed, constant strain rate, fixed load, fixed load rate, fixed strain rate, etc.

5. Dynamic display: During the test, the load, elongation, displacement and experimental curves selected as testing, real-time dynamic display on the main screen.

6.Automatic identification ,storage: test conditions, test results, regression

7.Graphical Analysis: After the test is completed, you can use the mouse to view data from the test curve, any point on the test curve can be enlarged analysis, and choose Print.

8. Report Output: Graphics and arguments are opened to customers and can be modified as required. It can output different report formats, convenient and easy to learn practical.

Techinical Parameter
Mode
WDW-20
Max. test force
20kn
Measurement range of test force
2%-100%
Testing machine accuracy grade
1
Accuracy of test force
≤±1%
Crosshead displacement resolution
0.01mm
Adjust speed range
0.005-500mm/min
Tensile test space
550mm
Compression test space
600mm
Host type
door structure
Host dimension
840mm x 600mm x 1750mm
Weight
500kg
Working environment
Room temperature 45 humidity 20%-80%
Standard Delivery
1
Test host
1
2
AC servo motor
1
3
Speed governor
1
4
Load cell
1
5
Precision ball screw
2
6
Deceleration system
1
7
Computer control system
1
8
Optical encoder
1
9
Computer
1
10
Printer
1
11
Windows system software
1
12
Accompany tools
1
13

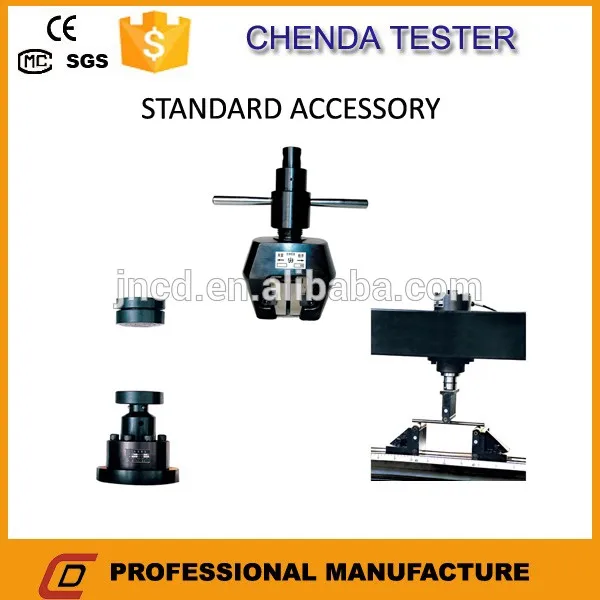

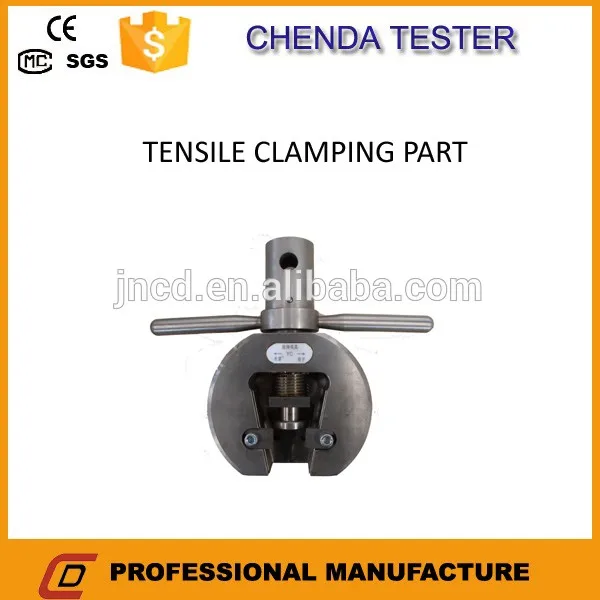

Tensile accessory
1
14
Compression accessory
1
15
Bending accessory
1
16
Technical information
1

        Max Test  Software Interface



            One machine can add four load cell



            One machine can add 8 extensometer


           Software have all kinds of test standards



Packing material
Plywood

Packing dimension

800*630*2110mm
650*600*870MM
Inner packing
Inner packing
 Weight
500kg

Delivery &Shipping

Delivery:3-5 days after received the payment

Shipping:
Suitable for international transport through shipping by sea, by air or any other delivery method. according to the customer demands

(Note: we can provide special packages according to buyer's requirements.)

        CE Certificate



    SGS Certificate



            Business License
