10kn Computerized electronic universal testing machine+belt tension gauge+chinese electronics manufacturers

FOB Reference Price:Get Latest Price
$4,500.00 - $5,000.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
Chenda
Model Number:
WDW-10
Usage:
Universal Testing Machine, Tensile Testing Machine
Structure:
Door type
Control:
Servo motor
Display:
Computer display
Max. test force:
10KN
Measurement range of test force:
2%-100%
Testing machine accuracy grade:
1
Test type:
Tension, compression, bending
Software:
Maxtest software with english version
Operation:
With standard PC
Power:
electronic
Supply Ability
Supply Ability:
300 Set/Sets per Month
Packaging & Delivery
Packaging Details
1> Inner package: dust-proof plastic bag
2> Outer package: standard export wooden case with pallet
3> Special package: according to buyer's requirements
4> The packages suitable for international transport by sea, by air or any other delivery methods
Port
Qingdao
Lead Time :
300
om
Product Description

10kn Computerized electronic universal testing machine+belt tension gauge+chinese electronics manufacturers

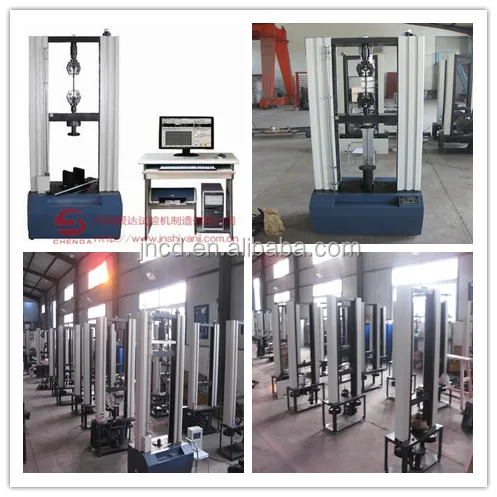

There are five key reasons worth sharing with illustrations from real customers.

1. Ease of use.

2. Configured to your needs.

3. Competitively priced.

4. Customer centric.

5. Accuracy.



Brief Introductions:

This machine adopts Japan's Shimadzu technical. Widely used in metal and nonmetal materials tensile, compression , shear and bending test. With different fixtures can do the fasteners tensile shear and bending test.

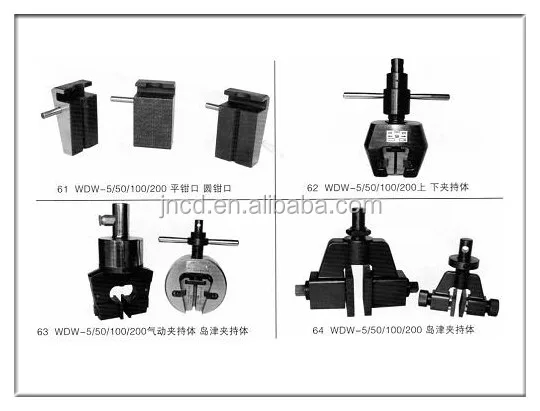

Standard accessories:

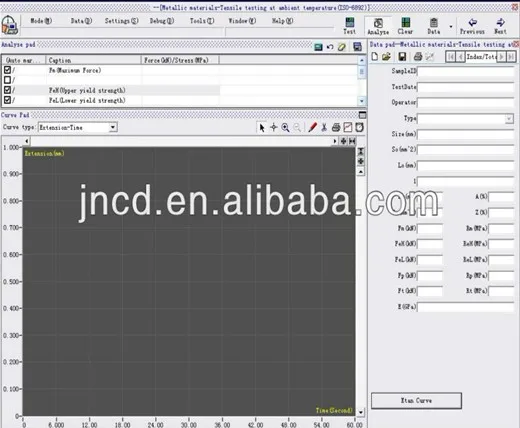

Maxtest software with English version:



Functions:

 1.This series are ideals for testing the tension, compression, bending and peeling of rubber ,plastic, textiles, electric wires, cables, network rope, wire, metal material ,etc. It can measure the tensile strength,bend strength,peeling strength,elongation,and and can print the curve of force-time,force-displacement and the testing reports automatically.

 2.Computer closed-loop control, change testing force stages automatically ,save the test results automatically; In processing  it can switch the appropriate measuring range by the load automatically ; test results can be arbitrary accessed and simulated reproduction  at any moment; several specimens characteristic curves can be superimposed by a number of different colors; test curves can be tracked to show at any moment, any segment of the curve can be enlarged to be analysed; it is stopped if the specimen be breaked, overload, over-current automatically.

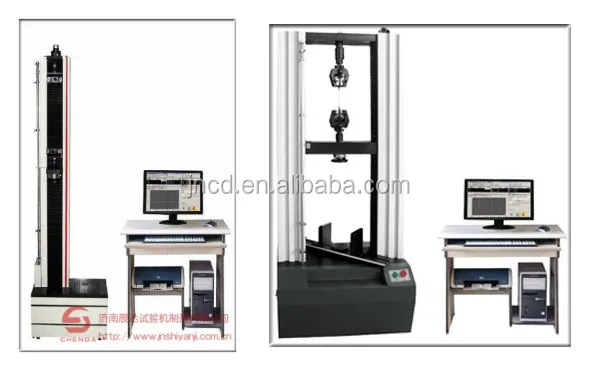

Computer control electronic UTM:

Host frame:

Technical specification:

Max. test force10KN
Measurement range of test force0.4%-100%
Testing machine accuracy grade1
Accuracy of test force≤±1%
Crosshead displacement resolution0.01mm
Adjust speed range0.01-500mm/min
Tensile space550mm
Compression space600mm
Host typesingle-arm structure
Host dimension600mm*450mm*1500mm
Working environment

room temperature 45°C

humidity 20%-80%

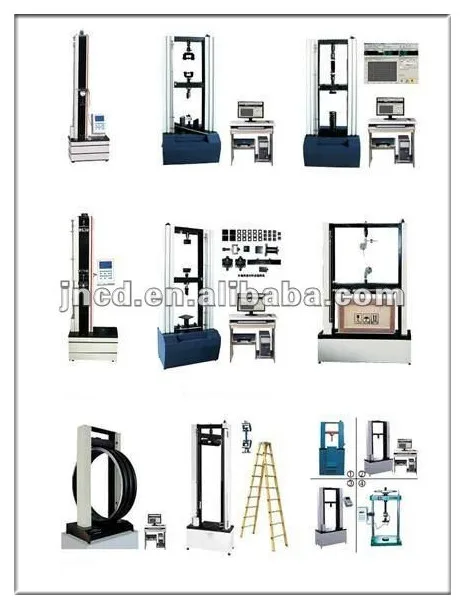

Different applies:

Standard delivery:

1> Test host             1

2> AC servo motor         1

3> Speed governor         1

4> Load cell               1

5> Precision ball screw       2

6> Deceleration system         1

7> Digital control system         1

8> Optical encoder             1

9> Computer                 1

10> Printer                 1

11> Windows system software       1

12> Accompany tools               1

13> Tensile accessory               1

14> Compression accessory         1

15> Bending accessory             1

16> Technical information           1



Workshop:







Packaging & Shipping

Packing with standard export wooden cases.

Shipping by sea with CFS/CFS from Qingdao sea port or for your requirement.


Company Information

Jinan Chenda Testing Machine Manufacturing Co., Ltd. was established in 2003, and is a professional comprehensive company which integrates research and development, production, marketing and service. Our products are applied widely in many fields such as scientific institutions, colleges, metallurgical, construction materials, railway trains, highway traffic, rubber plastic, wire and cable, and fire facilities.

Our company is located in the beautiful spring city - Jinan, which is the center for developing testing machines in China as well as the largest testing machines producing base at home.

We are specialized in providing:
1. Hydraulic universal testing machines, including computer controlled servo hydraulic universal testing machines, computer display hydraulic universal testing machines and digital display hydraulic universal testing machines
2. Electronic universal testing machines, including computer controlled electronic universal testing machines, electronic tensile testing machines, spring testing machines, panel testing machines, fire door testing machines, insulation material testing machines, Ring rigidity testing machines, electronic power testing machines, pellet testing machines, film testing machines, and so on
3. Friction and wear testing machines, such as computer screen display four-ball friction testing machines, computer display vertical universal friction and wear testing machines, and screen display type friction and wear testing machines
4. Complete impact testing equipment and bending testing machines

Our company regards "satisfying clients' demands" as the motivation for development, regards "technical innovation" as the means of advancing, regards "quality guarantee" as the essence of surviving and regards "employees' satisfaction" as the base for existence. We also shoulder the responsibility to provide our clients with first-class equipment for checking materials.
